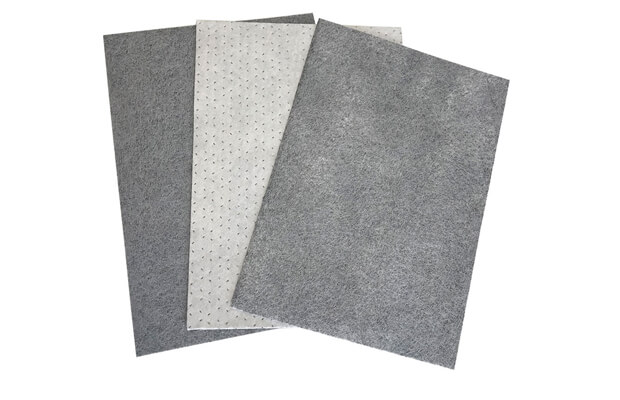

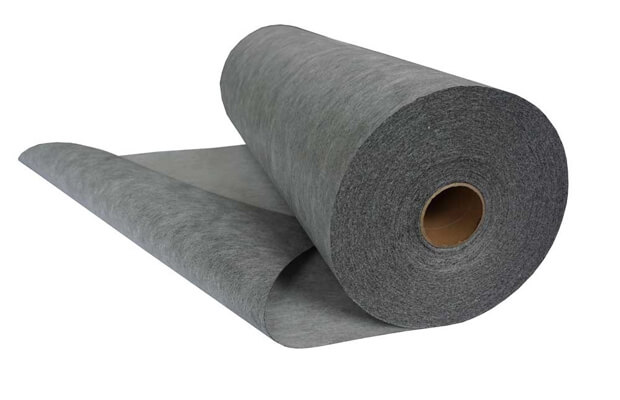

Carbon Filter Media

Activated carbon filter media not only block small airborne particles by electrostatic effect but also adsorb harmful gases in the air. It removes organic compounds and odors such as benzene, formaldehyde, trimethylamine, and etc.

Our premium quality carbon filter media is widely using in air conditioner, automotive cabin air, air purifier and other applications.

  • carbon filter media
  • carbon filter fabric
  • charcoal filter material
  • carbon filter media
  • carbon filter fabric
  • charcoal filter material

Features of Carbon Filter Media

1

Accurate filtration efficiency of the products can remove particles precisely;

2

Special treatment on activated carbon to remove toxic gas effectively;

3

Lower pressure drop for energy saving and noise control;

4

Easy for handling, pleating and operation.

Specifications of Carbon Filter Media


TypeInitial Efficiency*
(%)
Pressure Drop*
(Pa)
Thickness
(mm)
Area Weight
(g/m2)
Carbon Content
(g/m2)
Max. Width
(mm)
Roll Length
(m)
CF200-P95≥95≤171.1 ± 0.2200 ± 15%80 ± 10%1440200
CF250-P85≥85≤121.1 ± 0.2250 ± 15%120 ± 10%
CF250-P95≥95≤19
CF250-P99.5≥99.5≤29
CF350-P85≥85≤131.2 ± 0.2350 ± 15%203 ± 10%
CF350-P95≥95≤21
CF350-P99.5≥99.5≤31
CF450-P85≥85≤151.4 ± 0.2450 ± 15%306 ± 10%
CF450-P95≥95≤23
CF450-P99.5≥99.5≤33
* Testing condition:0.3μm NaCl @ 5.3cm/s
Please contact Mingguan for more product types which not listed in this table.



Carbon Filter Media Gallery

High quality activated carbon media with customized treatment products to ensure safety and excellent performance.
