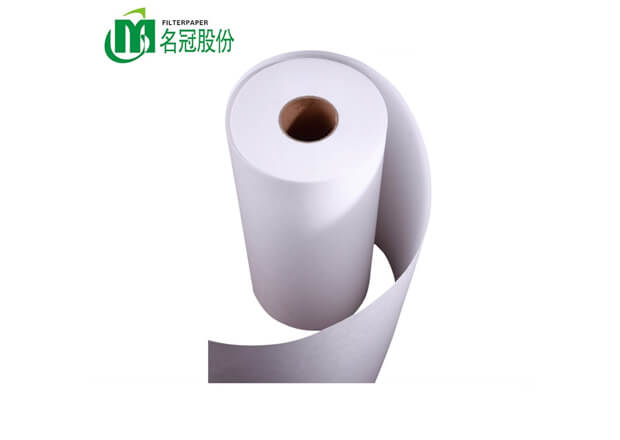

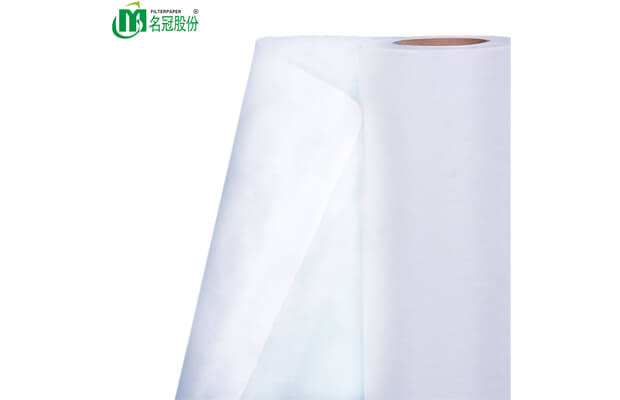

PP meltblown fabric for liquid filtration is manufactured with the same process as air filter media and heat calendered to ensure precise filtration efficiency for removing particles in liquid.
Mingguan utilizes state-of-the-art production lines and patented production technologies with benchmark testing facilities to ensure excellent product quality.
Wide efficiency range of products can be provided to meet various requirements;
High flow rate and excellent wettability for energy saving and productivity;
Excellent uniformity consistence and material durability;
Flexible combination of multilayer media to achieve specific performance.
| Type | Area Weight (g/m²) | Air Permeability* (L/m²/s) | Mean pore size (μm) | Thickness(mm) | Max. Width (mm) |
| MGL-1 | 100±10 | 3-7 | 1-2 | 0.25±0.03 | 1500 |
| MGL-2 | 88±10 | 8-12 | 2-3 | 0.25±0.03 | |
| MGL-3 | 72±5 | 20-30 | 2.5-4.5 | 0.25±0.03 | |
| MGL-5 | 56±5 | 30-50 | 4-7 | 0.23±0.03 | |
| MGL-7 | 53±5 | 70-90 | 6-9 | 0.23±0.03 | |
| MGL-10 | 50±5 | 110-130 | 9-12 | 0.23±0.03 | |
| *Air perm. testing condition：△P=200Pa Please contact Mingguan for more product types which not listed in this table. | |||||
| Type | Area Weight (g/m²) | Air Permeability* (L/m²/s) | Mean pore size (μm) | Thickness(mm) | Max. Width (mm) |
| MGL-13 | 40±3 | 190-210 | 12-15 | 0.22±0.03 | 1500 |
| MGL-15 | 35±3 | 200-250 | 14-17 | 0.20±0.03 | |
| MGL-18 | 50±5 | 250-400 | 17-20 | 0.4±0.03 | |
| MGL-20 | 30±3 | 400-600 | 18-22 | 0.33±0.03 | |
| MGL-30 | 30±3 | 1300-1600 | 28-32 | 0.33±0.03 | |
| * Air perm. testing condition：△P=200Pa Please contact Mingguan for more product types which not listed in this table. | |||||
We provide wide pore size (1μm – 100μm) products with high flow rate, consistent uniformity and excellent durability.
