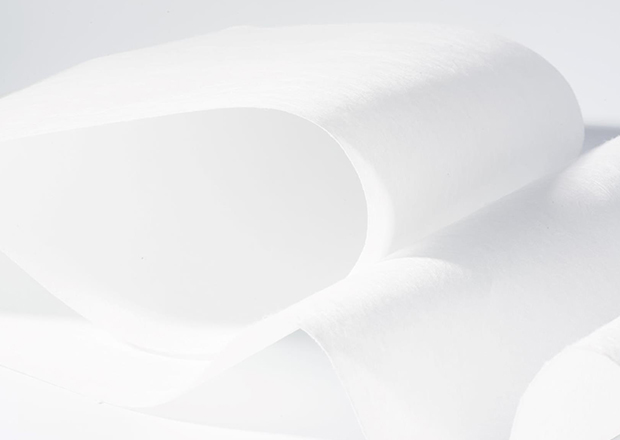

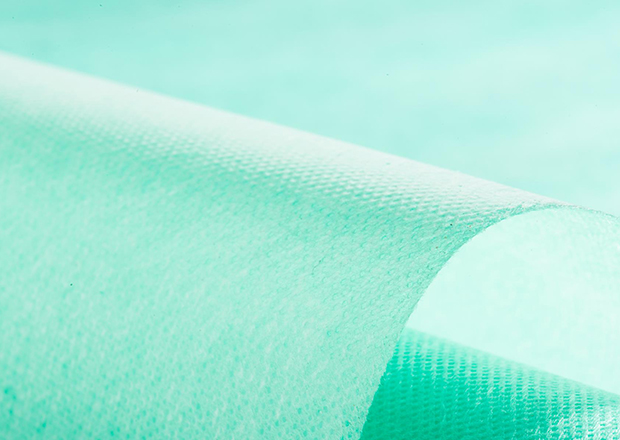

Nanofiber media is composed of nano scale diameter fibers. Small size effect gives nano fibers excellent properties and finer diameter. With smaller pore size and higher porosity, nanofiber filter material can be widely used in many applications. Mingguan Micro-nano fiber fabric is combined nanofiber and synthetic micron scale fibers by our unique technology to provide excellent filtration performance.
We also provides nanofiber filter material products for more applications, such as liquid filtration, textile, biomedical and etc. Please contact us if you need more product information.
H11-U16 wide efficiency range of products can be provided to meet specific requirements;
Lower pressure drop for energy saving and noise control;
Excellent dust holding capacity and durability;
Flexible raw material choice to achieve excellent performance.
| Type | Area Weight (g/m²) | Thickness (mm) | Initial Efficiency* (%) | Pressure Drop* (Pa) | Max. Width (mm) | Material |
| SNF-NH11 | 65 ± 10 | 0.55 ± 0.05 | ≥98 | ≤55 | 1500 | PP+PAN/PU/PVDF/PES |
| SNF-NH12 | 65 ± 10 | 0.55 ± 0.05 | ≥99.9 | ≤85 | ||
| SNF-NH13 | 70 ± 10 | 0.58 ± 0.05 | ≥99.97 | ≤150 | ||
| SNF-NH14 | 75 ± 10 | 0.62 ± 0.05 | ≥99.995 | ≤210 | ||
| SNF-NU15 | 75 ± 10 | 0.62 ± 0.05 | ≥99.999 | ≤230 | ||
| * Testing condition：0.3μm NaCl @5.3cm/s Please contact Mingguan for more filter fabric wholesale product types which not listed in this table. | ||||||
Mechanical filtration with low pressure drop than traditional filter media, such as PTFE and fiberglass media at the same efficiency level.
